Honda CB360 Tank Restoration
A bare-metal reset with straightened lines, restored badges, and fully painted factory-style striping.

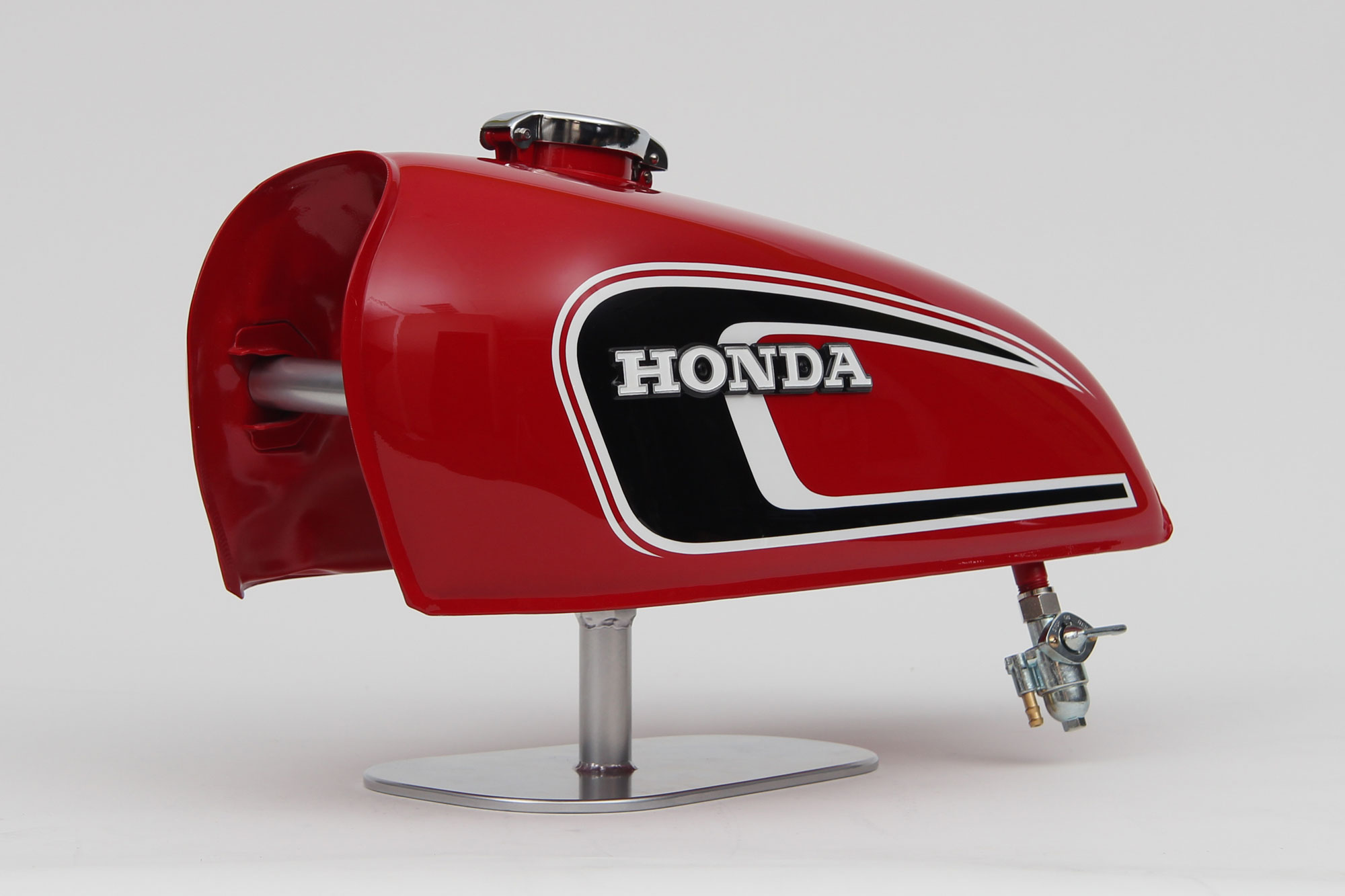

red-cb360-tank-restoration-left-front-quarter
Three-quarter front view showing reproduction chrome cap and smooth curvature.

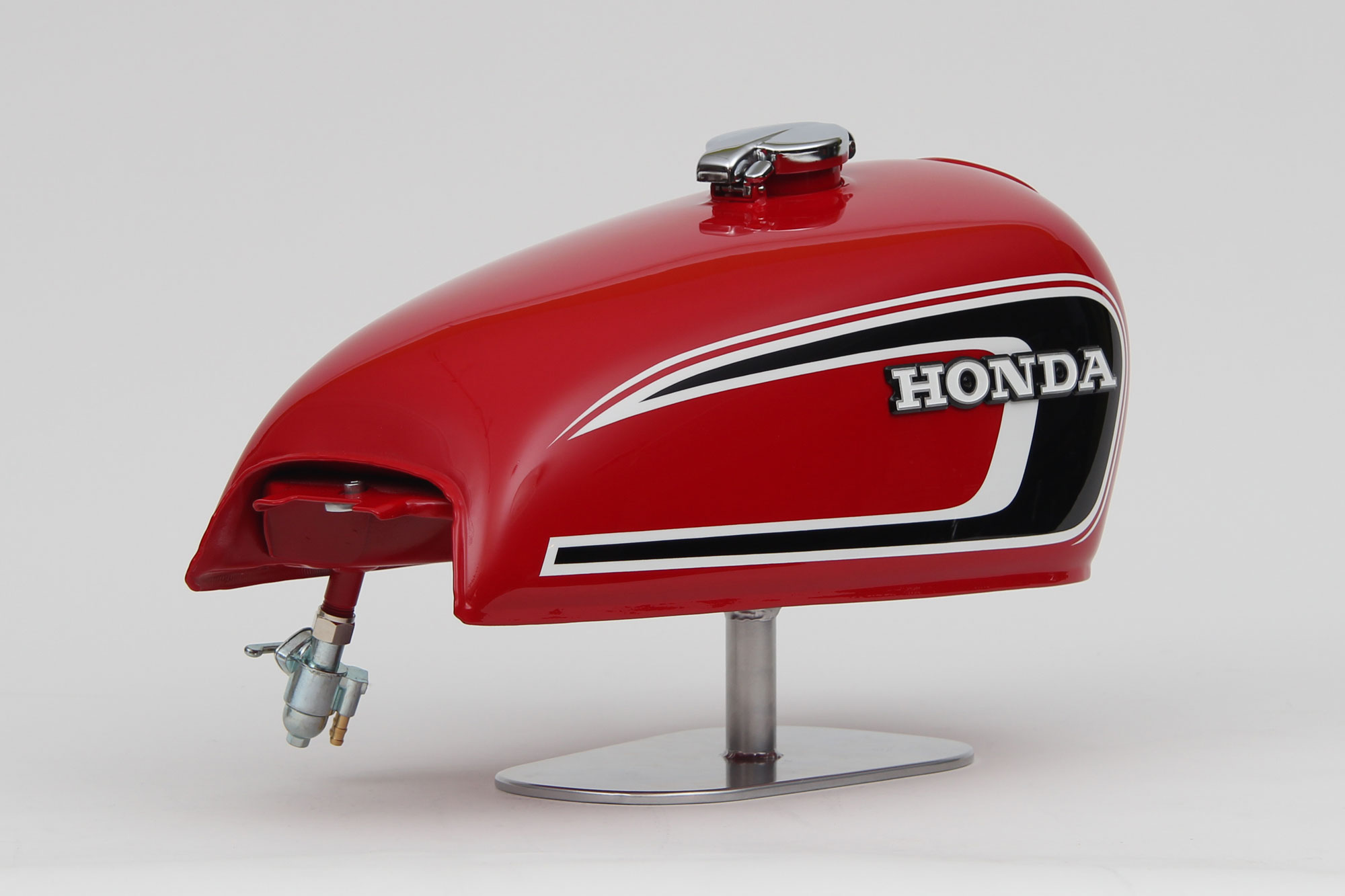

red-cb360-tank-restoration-right-rear-quarter
Right-side view of fully restored CB360 tank with new petcock installed.

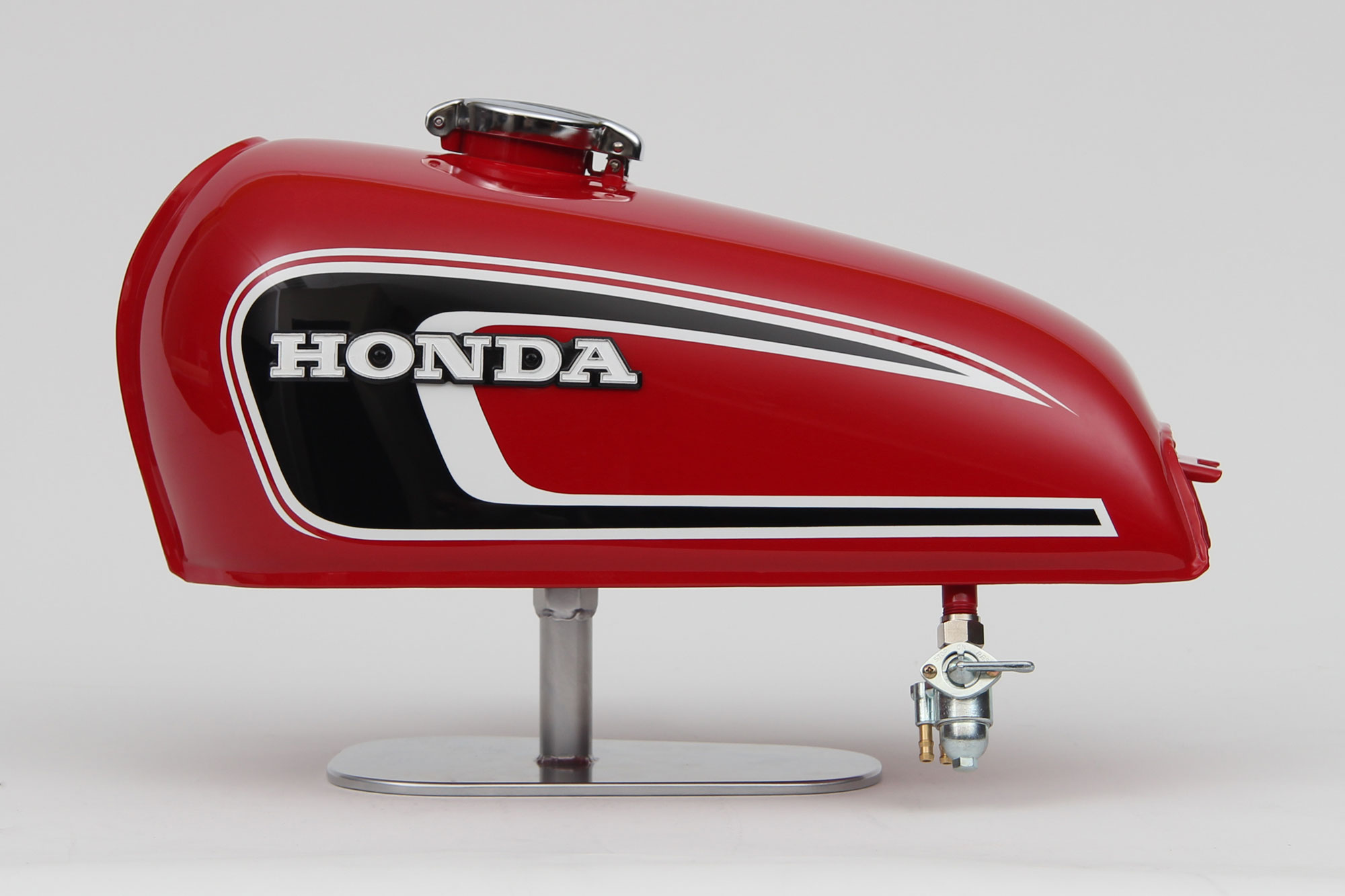

red-cb360-tank-restoration-left-profile
Left-side profile with restored badge and crisp painted graphics.

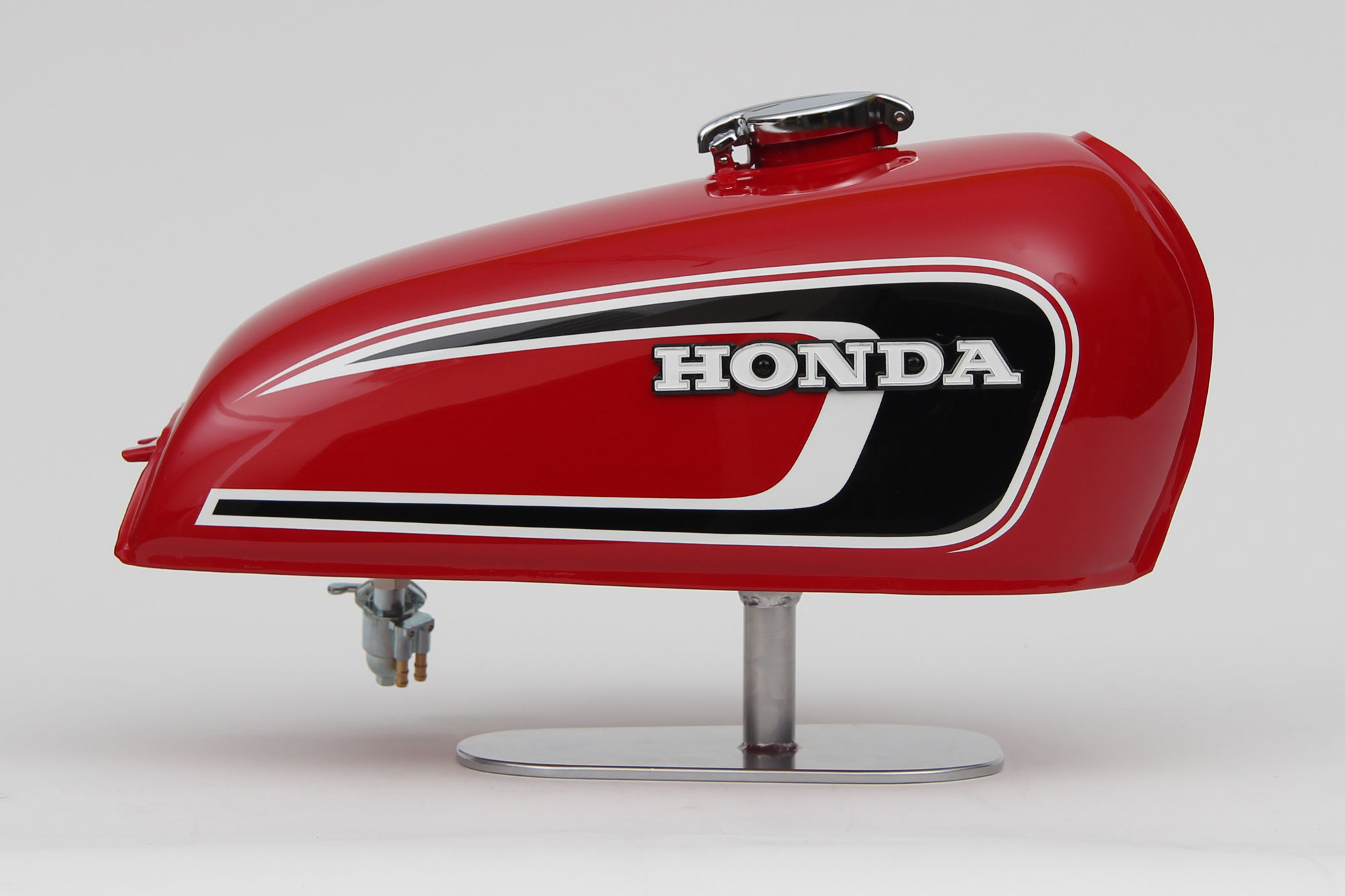

red-cb360-tank-restoration-right-profile
Right-side profile highlighting straightened body lines and polished finish.

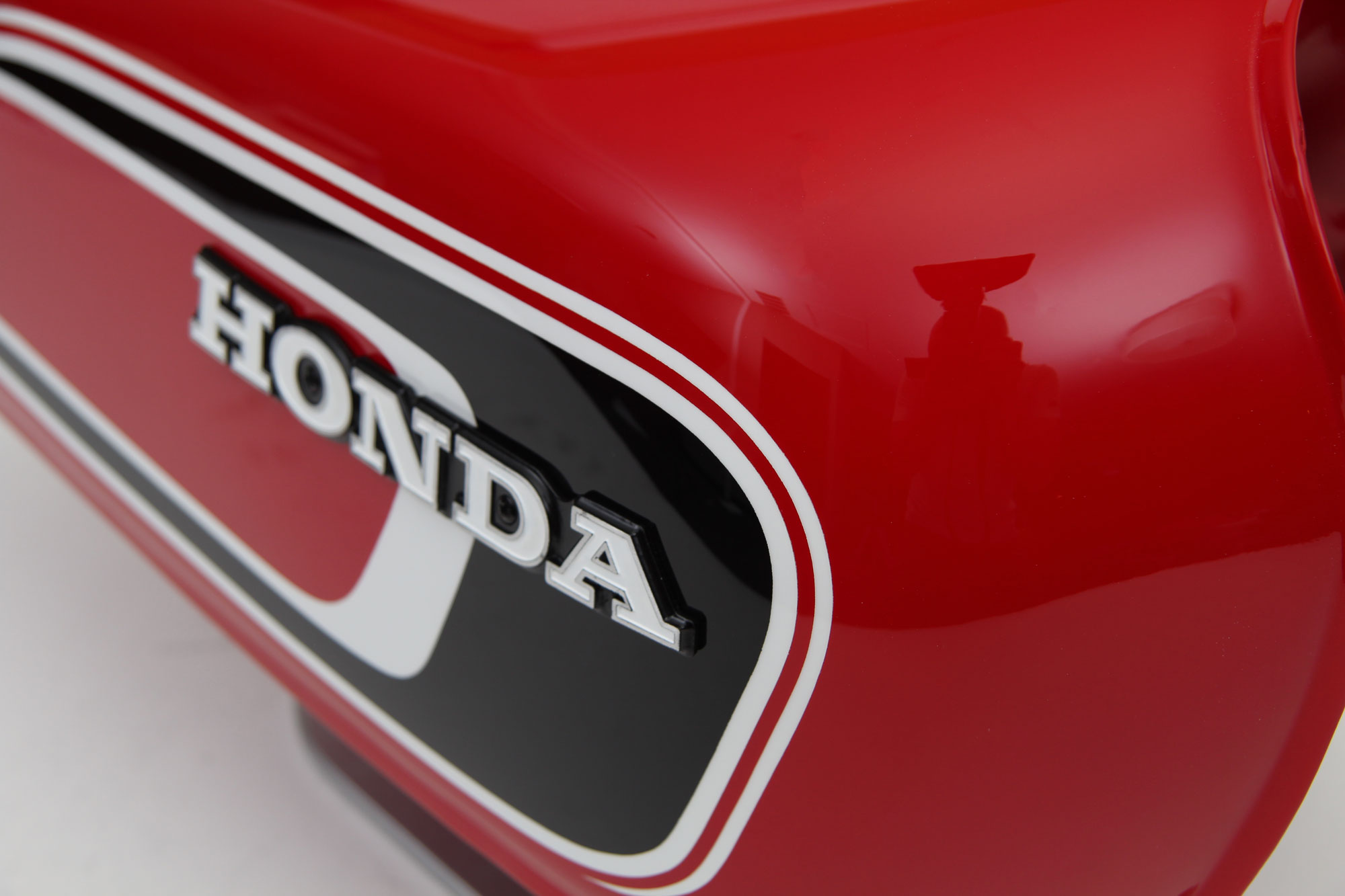

red-cb360-tank-restoration-front-graphics-closeup
Close-up of restored Honda badge set against hand-painted black and white striping.
red-cb360-tank-restoration-rear-graphics-closeup
Detail of hand-masked striping flowing along the tank’s contour.
We restored this Honda CB360 fuel tank starting from bare metal. The tank was stripped, metal-finished, and completed with bodywork to straighten the original lines and clean up years of wear. An epoxy primer was applied for long-term corrosion resistance before moving into color.
The tank was finished in a rich Honda red basecoat. All graphics were hand-masked and painted—not decals—so the striping and black panels sit under the clear with crisp edges and proper depth. The finish was sealed in high-quality automotive 2K clearcoat, then wet sanded and polished to a mirror gloss.
Original Honda tank badges were restored and reinstalled to keep the factory character intact. We also fitted a new petcock and a reproduction chrome tank cap to complete the package. The result is a CB360 tank that looks period-correct but carries the durability of a modern paint system.
Interested in your own custom project? Contact us.
